Progress 10/5/2016

For this week, I worked on designing a bracket that will help keep the width of the track uniform at the end of the bends.  We noticed that the width vary through out the track causing the bogie to work more at tighter widths.  These brackets are meant to be welded on instead of screwed in.  I also worked on getting a two loop track together but the connector between loops is not done yet. Pictures of CAD work is shown below.

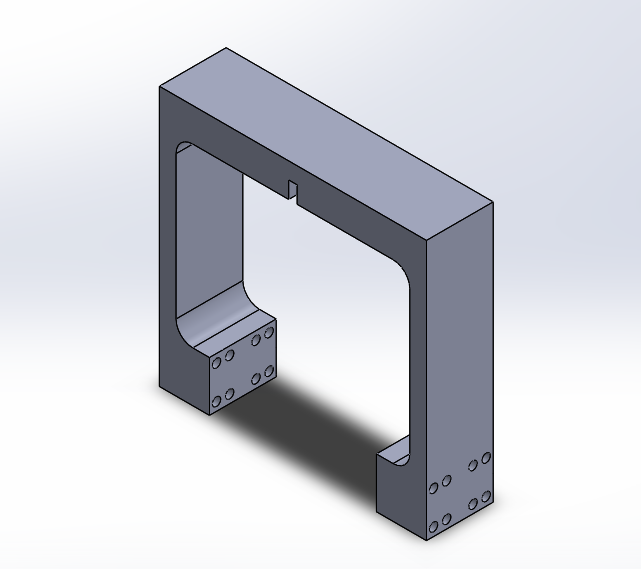

Figure 1: ISO view of bracket

Figure 2: Dimensions of bracket

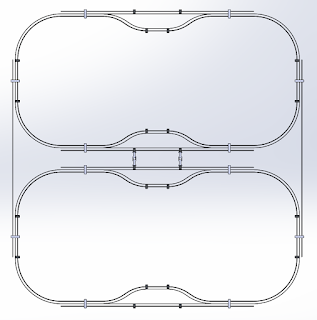

Figure 3: Two loop Track
